Application providers

In our last exercise of this workshop we'll take a look at a kcp-native application that uses sigs.k8s.io/multicluster-runtime to run a kcp provider, and reconciles the deployment across workspaces.

Going native

After the great kick-off with the PostgreSQL-as-a-Service business, the folks back at SQL3 Co. have decided to give in, and give their kcp-aware customers a treat. They realised that some of the users don't really like the psql CLI interface, and would prefer web-based pgAdmin instead. And so they invested into building a kcp-native pgAdmin provider, with the same principles as we've seen up until now: the workloads stay with the service owner, the spec is consumer's.

To accomplish that, they say all they had to use was:

We won't go into any implementation details here, but you are very welcome to inspect and play around with the code yourself at https://github.com/kcp-dev/contrib/tree/main/20250401-kubecon-london/workshop/kcp-multicluster-provider-example. The kcp-aware bits are clearly marked to see what multicluster bits need to be added into the kubebuilder-generated base. As far as the complexity goes, we hope you will find it quite underwhelming :)

There is an App in my WS! 🤌

The Application brought to you by SQL3 Co. has a CRD definition and a controller that comes with it, and that they are running (we'll see how right after this) on their infrastructure. They were also nice enough to prepare an APIResourceSchema too! For us at kcp land though, not much will change since the last time. In a provider workspace we create an APIExport for the prepared APIResourceSchema, and then we add consumers by binding to that export.

Important

export WORKSHOP_ROOT="$(git rev-parse --show-toplevel)/20250401-kubecon-london/workshop"
export EXERCISE_DIR="${WORKSHOP_ROOT}/04-application-providers"
export KUBECONFIGS_DIR="${WORKSHOP_ROOT}/kubeconfigs"
export KREW_ROOT="${WORKSHOP_ROOT}/bin/.krew"
export PATH="${WORKSHOP_ROOT}/bin/.krew/bin:${WORKSHOP_ROOT}/bin:${PATH}"

# Stashing our admin.kubeconfig away for when we deploy the multicluster provider.
cp ${KUBECONFIGS_DIR}/admin.kubeconfig ${KUBECONFIGS_DIR}/mcp-app.kubeconfig
export KUBECONFIG="${KUBECONFIGS_DIR}/mcp-app.kubeconfig"

set -gx WORKSHOP_ROOT (git rev-parse --show-toplevel)/20250401-kubecon-london/workshop
set -gx EXERCISE_DIR $WORKSHOP_ROOT/04-application-providers
set -gx KUBECONFIGS_DIR $WORKSHOP_ROOT/kubeconfigs
set -gx KREW_ROOT $WORKSHOP_ROOT/bin/.krew
set -gx PATH $WORKSHOP_ROOT/bin/.krew/bin $WORKSHOP_ROOT/bin $PATH

# Stashing our admin.kubeconfig away for when we deploy the multicluster provider.
cp $KUBECONFIGS_DIR/admin.kubeconfig $KUBECONFIGS_DIR/mcp-app.kubeconfig
set -gx KUBECONFIG $KUBECONFIGS_DIR/mcp-app.kubeconfig

We'll use :root:providers:application workspace for our pgAdmin app export:

kubectl ws use :root:providers
kubectl ws create application --enter
kubectl apply -f $EXERCISE_DIR/apis/apiresourceschema.yaml
kubectl apply -f $EXERCISE_DIR/apis/export.yaml

And now a consumer:

kubectl ws :root:consumers:pg
kubectl kcp bind apiexport root:providers:application:apis.contrib.kcp.io --accept-permission-claim secrets.core
kubectl apply -f $EXERCISE_DIR/apis/application.yaml

What does the application look like?

apiVersion: apis.contrib.kcp.io/v1alpha1
kind: Application
metadata:
  name: application-kcp
spec:
  databaseRef: db-one
  databaseSecretRef:
    name: kcp-superuser

It references the database we've created earlier, and the Secret with credentials to access it. Meanwhile, a word has got out to SQL3 Co. that we are ready to use their fancy new Application reconciler, and so they ran this command--in a separate terminal and just left it running:

Starting the mcp-app
kubectl ws use :root:providers:application
mcp-example-crd --server=$(kubectl get apiexport apis.contrib.kcp.io -o jsonpath="{.status.virtualWorkspaces[0].url}") \
  --provider-kubeconfig $KUBECONFIGS_DIR/provider.kubeconfig

Important

We now have three long-running processes. Let's open a fourth shell now.

export WORKSHOP_ROOT="$(git rev-parse --show-toplevel)/20250401-kubecon-london/workshop"
export EXERCISE_DIR="${WORKSHOP_ROOT}/04-application-providers"
export KUBECONFIGS_DIR="${WORKSHOP_ROOT}/kubeconfigs"
export KREW_ROOT="${WORKSHOP_ROOT}/bin/.krew"
export PATH="${WORKSHOP_ROOT}/bin/.krew/bin:${WORKSHOP_ROOT}/bin:${PATH}"
export KUBECONFIG="${KUBECONFIGS_DIR}/admin.kubeconfig"

set -gx WORKSHOP_ROOT (git rev-parse --show-toplevel)/20250401-kubecon-london/workshop
set -gx EXERCISE_DIR $WORKSHOP_ROOT/04-application-providers
set -gx KUBECONFIGS_DIR $WORKSHOP_ROOT/kubeconfigs
set -gx KREW_ROOT $WORKSHOP_ROOT/bin/.krew
set -gx PATH $WORKSHOP_ROOT/bin/.krew/bin $WORKSHOP_ROOT/bin $PATH
set -gx KUBECONFIG $KUBECONFIGS_DIR/admin.kubeconfig
View of the service owner cluster
$ export KUBECONFIG=$KUBECONFIGS_DIR/provider.kubeconfig
$ kubectl get namespaces # Get the namespace in question. Can you guess which one it is?
$ KUBECONFIG=$KUBECONFIGS_DIR/provider.kubeconfig kubectl -n 1yaxsslokc5aoqme get all
NAME                                   READY   STATUS    RESTARTS   AGE
pod/application-kcp-578c5dd4df-fwlgw   1/1     Running   0          29s
pod/kcp-1                              1/1     Running   0          10m

NAME                      TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)    AGE
service/application-kcp   ClusterIP   10.96.68.251   <none>        8080/TCP   29s
service/kcp-r             ClusterIP   10.96.89.104   <none>        5432/TCP   10m
service/kcp-ro            ClusterIP   10.96.69.97    <none>        5432/TCP   10m
service/kcp-rw            ClusterIP   10.96.33.11    <none>        5432/TCP   10m

NAME                              READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/application-kcp   1/1     1            1           29s

NAME                                             DESIRED   CURRENT   READY   AGE
replicaset.apps/application-kcp--578c5dd4df      1         1         1       29s

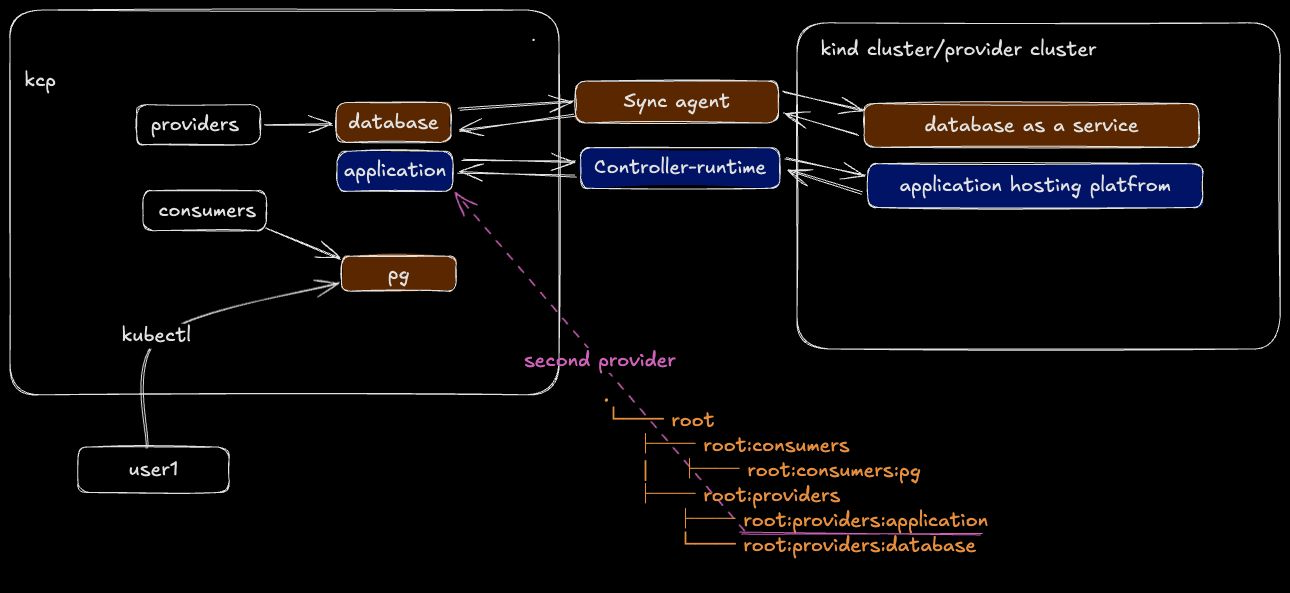

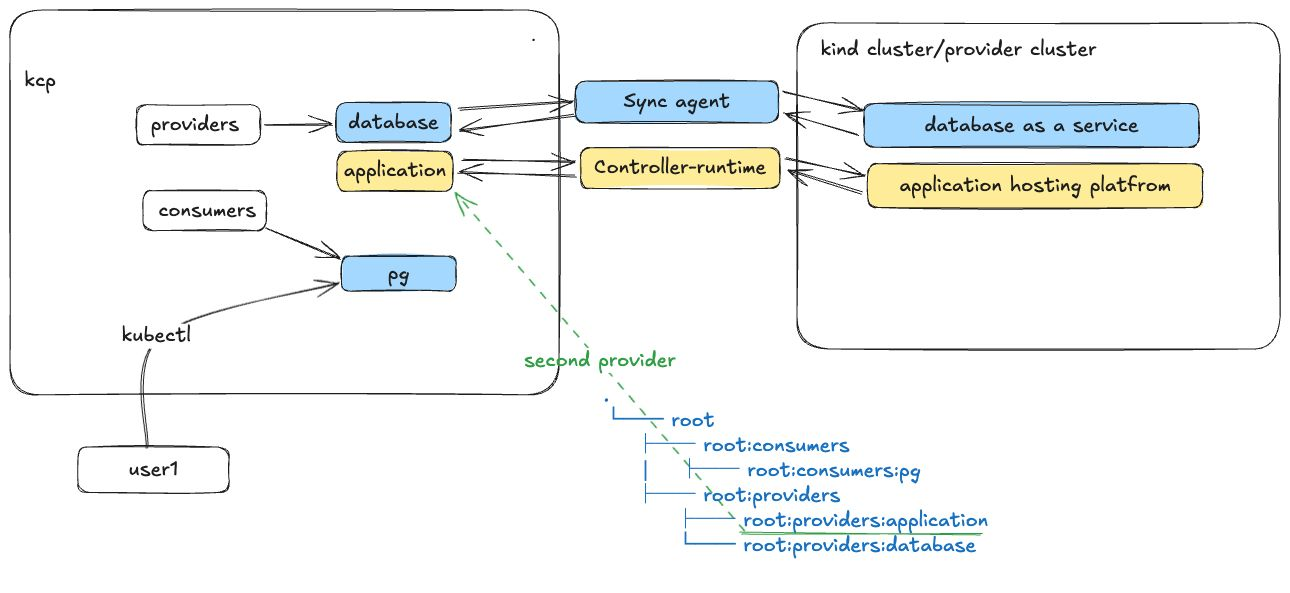

Diagram of a multicluster Application deployment provider Diagram of a multicluster Application deployment provider

Continuing in our consumer workspace, let's check the Application object!

$ kubectl get application application-kcp -o json
{
    "apiVersion": "apis.contrib.kcp.io/v1alpha1",
    "kind": "Application",
    "metadata": {
        "annotations": {
            "kcp.io/cluster": "1yaxsslokc5aoqme"
        },
...
    "status": {
        "connectionString": "kubectl port-forward svc/application-kcp 8080:8080 -n 1yaxsslokc5aoqme",
        "status": "Ready"
    }
}

Now that's some weird connection string! Similar to what we did in the previous exercise, we didn't want to have our demo setup too complex, and so for the sake of brevity, let's pretend that port forwarding is an actual Ingress, and open up the connection.

KUBECONFIG=$KUBECONFIGS_DIR/provider.kubeconfig kubectl port-forward svc/application-kcp 8080:8080 -n 1yaxsslokc5aoqme

Drum-roll 🥁🥁🥁

The last thing for you to do is to open up your browser, and visit localhost:8080 in your browser.

High-five! 🚀🚀🚀

Congratulations, you've reached the finishing line! Great job!

This was a lot to take in, so let's recap. We've gone through basic concepts of kcp, what proper resource isolation looks like, but also how APIs can be shared. We've also learnt that we can specify what resources to share, limiting the scope of what a provider and consumer can reach. Using those principles we've been able to build consumer-producer relationship between Kubernetes endpoints: not only inside a single kcp instance, but with external clusters too. We've also peaked into multicluster controllers and reconcilers, where the options to innovate are vast. We invite you to give it a try, and see how your Kubernetes infrastructure could benefit from a true SaaS approach, with kcp!
