Dynamic providers
In this exercise we'll explore an actual SaaS scenario: self-provisioning PostgreSQL databases, where:
- one (external) cluster will be in the role of a service owner, running the database servers,
- one workspace will be in the role of a service provider, where consumers can self-service their databases,
- one or more workspaces will be consuming the database(s).
Excited? Let's get down to it!
Herding databases 🐑🐑🐑
Important
export WORKSHOP_ROOT="$(git rev-parse --show-toplevel)/20250401-kubecon-london/workshop"
export EXERCISE_DIR="${WORKSHOP_ROOT}/03-dynamic-providers"
export KUBECONFIGS_DIR="${WORKSHOP_ROOT}/kubeconfigs"
export KREW_ROOT="${WORKSHOP_ROOT}/bin/.krew"
export PATH="${WORKSHOP_ROOT}/bin/.krew/bin:${WORKSHOP_ROOT}/bin:${PATH}"
set -gx WORKSHOP_ROOT (git rev-parse --show-toplevel)/20250401-kubecon-london/workshop
set -gx EXERCISE_DIR $WORKSHOP_ROOT/03-dynamic-providers
set -gx KUBECONFIGS_DIR $WORKSHOP_ROOT/kubeconfigs
set -gx KREW_ROOT $WORKSHOP_ROOT/bin/.krew
set -gx PATH $WORKSHOP_ROOT/bin/.krew/bin $WORKSHOP_ROOT/bin $PATH
Surprise! You've just been appointed as the owner of a company responsible for running PostgreSQL databases, SQL3 Co.! What's worse, you haven't heard of kcp yet! What you did hear of though is that PostgreSQL servers need compute and storage. And that Kubernetes can do all of that. So, to get things going, let's start up a kind-backed Kubernetes cluster:
Creating a kind cluster
If that doesn't work (error running kind with rootless provider requires setting systemd property "Delegate=yes"), try running the following command instead:
systemd-run --user --scope \
--unit="workshop-kcp-kind.scope" \
--property=Delegate=yes \
kind create cluster --name provider --kubeconfig $KUBECONFIGS_DIR/provider.kubeconfig
See the following links for details: https://kind.sigs.k8s.io/docs/user/rootless/ and https://lists.fedoraproject.org/archives/list/devel@lists.fedoraproject.org/thread/ZMKLS7SHMRJLJ57NZCYPBAQ3UOYULV65/.
Once the cluster is created, you can verify it's working with kubectl:
$ KUBECONFIG=$KUBECONFIGS_DIR/provider.kubeconfig kubectl version
Client Version: v1.32.2
Kustomize Version: v5.5.0
Server Version: v1.32.2
Success all around, let's deploy the CloudNative PG--the Kubernetes PostgreSQL operator:
KUBECONFIG=$KUBECONFIGS_DIR/provider.kubeconfig kubectl apply --server-side -f \
https://raw.githubusercontent.com/cloudnative-pg/cloudnative-pg/release-1.25/releases/cnpg-1.25.1.yaml
While its Pods are starting up, let's move onto the next step.
Give and take
Whew, we're back in kcp land! Equipped with the knowledge from our last exercise, we already know that we can model producer-consumer relationship as workspaces, where one provides an APIExport (that exposes APIs described by APIResourceSchemas), and the other(s) "imports" it by binding to it, with an APIBinding.
Important
Notice that cp call just above, and how we set up the KUBECONFIG variable? While important, we will come back to why we did that later, in the next section. For now, let's focus on creating the provider's workspace, and an APIExport in it. We already have :root:providers workspace created, from where we provisioned Cowboys. While not very useful, we now know the commands to move around in the hierarchy of workspaces, and can create them too! Let's do that, this time for databases:
The definition of the APIExport is already prepared for us in $EXERCISE_DIR/apis/export.yaml:
If you're curious, you may go ahead and inspect the file and/or the object that was just created, and you'll notice that it's rather empty. As we continue forward, we'll see it populate with actual pgsql database specs and statuses. For now, let's create an equally empty APIBinding, to match our empty APIExport:
Important
kubectl ws :root:consumers
kubectl ws create pg --enter
kubectl kcp bind apiexport root:providers:database:postgresql.cnpg.io --accept-permission-claim secrets.core,namespaces.core
We've created a workspace :root:consumers:pg. The APIExport needs permissions to secrets, as it will store the authentication credentials for the databases we'll create, hence the permission claim flag.

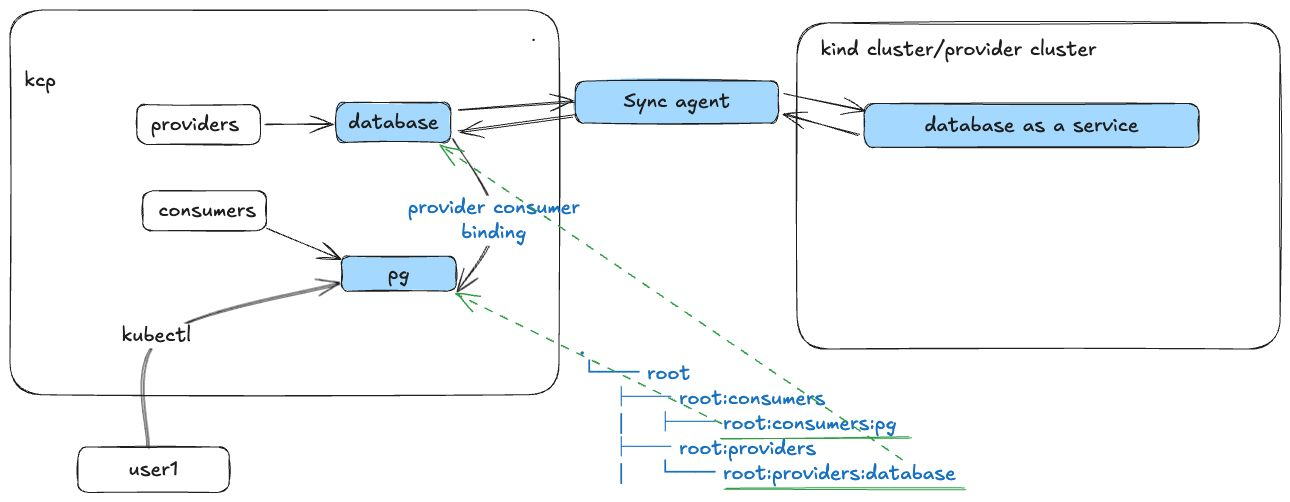

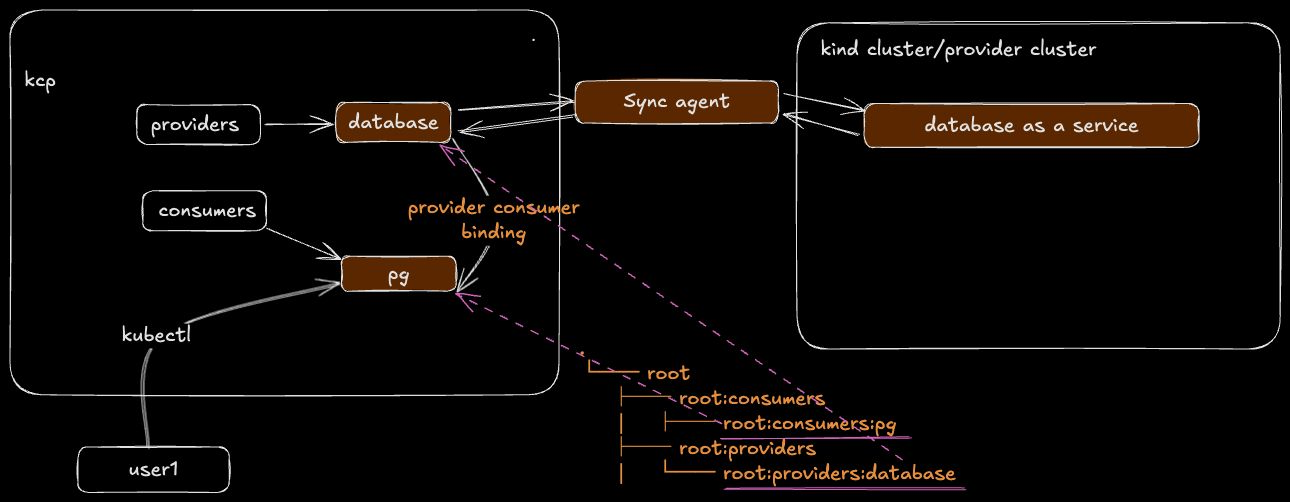

With all that done, we're ready to connect the dots: the external cluster running the pgsql servers, the provider workspace exposing the postgresql.cnpg.io APIs, and the consumer workspace self-provisioning the pgsql servers and databases.
Connect the dots
In the last exercise we discussed how there is nothing to reconcile Cowboys between workspaces, and that we'd need a controller that is able to observe state globally, react on Spec changes and update Status of the watched objects. Moreover, we need not only synchronizing APIs and objects across workspaces, but also across an external Kubernetes cluster that we've created above.
To do all of that, kcp offers one implementation of such a controller, the api-syncagent. The api-syncagent generally runs in the cluster owning the service, i.e. our kind cluster. Then, the service owner would publish the API groups that are to be exposed to kcp--this is done by defining a PublishedResource object which we'll see in a bit. The published resources are then picked up by the api-syncagent, creating APIResourceSchemas for them automatically, and shoving them into the prepared APIExport on the kcp side, making them ready for consumption. There is a lot more going on, and you can consult the project's documentation. But for now, this brief introduction shall suffice and we can move onto incorporating the controller into our seedling infrastructure.
Important
kubectl apply --server-side -f https://raw.githubusercontent.com/kcp-dev/api-syncagent/refs/tags/v0.2.0/deploy/crd/kcp.io/syncagent.kcp.io_publishedresources.yaml
kubectl apply -f $EXERCISE_DIR/apis/resources-cluster.yaml
kubectl apply -f $EXERCISE_DIR/apis/resources-database.yaml
We've created PublishedResource objects for clusters and databases resources of the postgresql.cnpg.io API group. Give yourself a second and check the definitions we've just applied. Take a look at the publish-cnpg-cluster PublishedResource, and you'll notice that it's not publishing just the pgsql Cluster, but also a Secret:
# ... snip ...
related:
- kind: Secret
origin: kcp
identifier: credentials
reference:
name:
path: "spec.superuserSecret.name"
Currently in the role of a service owner, we know that pgsql (and specifically cnpg) stores credentials to the database server in a Secret, and that the secret is referenced by the cluster resource in its spec.superuserSecret.name field. The api-syncagent will extract that object using the path we supplied, and share it along with the cluster resource in the APIExport.
And that's it! The only thing left for us to do is to run the controller itself. api-syncagent can be deployed inside the cluster, or run externally as a standalone process. To make things simpler, we are going with the latter option. Keep the process running:
api-syncagent --namespace default --apiexport-ref postgresql.cnpg.io --kcp-kubeconfig=$KUBECONFIGS_DIR/sync-agent.kubeconfig
At the very beginning of this exercise we've made a copy of admin.kubeconfig into sync-agent.kubeconfig and using that we've created the :root:providers:database workspace. If you are wondering how does api-syncagent know where it can find the prepared APIExport, this is how. The kubeconfig has its context set to that workspace's endpoint. Now, leave the controller running and let's go create some databases finally!
Bonus step
If you are curious what happened to our mostly empty APIExport and APIBinding objects from before, now would be the time to KUBECONFIG=$KUBECONFIGS_DIR/admin.config kubectl get -o json them in another terminal. Can you spot what's different?
May I have some?
Important
At this point we have two shells running two processes. Let's open a third shell so we can continue.
export WORKSHOP_ROOT="$(git rev-parse --show-toplevel)/20250401-kubecon-london/workshop"
export EXERCISE_DIR="${WORKSHOP_ROOT}/03-dynamic-providers"
export KUBECONFIGS_DIR="${WORKSHOP_ROOT}/kubeconfigs"
export KREW_ROOT="${WORKSHOP_ROOT}/bin/.krew"
export PATH="${WORKSHOP_ROOT}/bin/.krew/bin:${WORKSHOP_ROOT}/bin:${PATH}"
export KUBECONFIG="${KUBECONFIGS_DIR}/admin.kubeconfig"
set -gx WORKSHOP_ROOT (git rev-parse --show-toplevel)/20250401-kubecon-london/workshop
set -gx EXERCISE_DIR $WORKSHOP_ROOT/03-dynamic-providers
set -gx KUBECONFIGS_DIR $WORKSHOP_ROOT/kubeconfigs
set -gx KREW_ROOT $WORKSHOP_ROOT/bin/.krew
set -gx PATH $WORKSHOP_ROOT/bin/.krew/bin $WORKSHOP_ROOT/bin $PATH
set -gx KUBECONFIG $KUBECONFIGS_DIR/admin.kubeconfig
Bam! You've just been promoted to a consumer! You don't have an application to run yet, but you know it will need a database or two for sure. Things couldn't be easier, because your company closed a contract with SQL3 Co., and what's more, there is an APIBinding in your workspace, importing the postgresql.cnpg.io APIs, ready to use.
kubectl apply -f $EXERCISE_DIR/apis/consumer-1-cluster.yaml
kubectl apply -f $EXERCISE_DIR/apis/consumer-1-database.yaml
It's important we wait for the resources to be ready before we continue:
# Notice that the pgsql cluster is still booting up:
$ kubectl get cluster
NAME AGE INSTANCES READY STATUS PRIMARY
kcp 27s 1 Setting up primary
# ... 1 to 5 minutes later ...
# This is what a healthy cluster status looks like:
$ kubectl get cluster
NAME AGE INSTANCES READY STATUS PRIMARY
kcp 50s 1 1 Cluster in healthy state kcp-1
And just like that, we have a PostgreSQL server with a database, that somebody else is running. Try to follow the example below!
$ export KUBECONFIG=$KUBECONFIGS_DIR/provider.kubeconfig
$ kubectl get namespaces
1yaxsslokc5aoqme Active 6m34s
cnpg-system Active 10m
default Active 10m
kube-node-lease Active 10m
kube-public Active 10m
kube-system Active 10m
local-path-storage Active 10m
$ kubectl -n 1yaxsslokc5aoqme get clusters
NAME AGE INSTANCES READY STATUS PRIMARY
kcp 7m46s 1 1 Cluster in healthy state kcp-1
$ kubectl -n 1yaxsslokc5aoqme get databases
NAME AGE CLUSTER PG NAME APPLIED MESSAGE
db-one 8m3s kcp one true
$ export KUBECONFIG=$KUBECONFIGS_DIR/admin.kubeconfig
$ kubectl ws use :root:consumers:pg
Current workspace is 'root:consumers:pg' (type root:universal).
$ kubectl get databases
NAME AGE CLUSTER PG NAME APPLIED MESSAGE
db-one 8m45s kcp one true
$ kubectl get clusters
NAME AGE INSTANCES READY STATUS PRIMARY
kcp 8m51s 1 1 Cluster in healthy state kcp-1
$ kubectl get secrets
NAME TYPE DATA AGE
kcp-postgres kubernetes.io/basic-auth 2 9m3s
kcp-superuser kubernetes.io/basic-auth 2 9m3s
Indeed, if you check the kcp side, you'll see that we have only one consumer pg with a single database instance in our workspace root:consumers:pg. Nothing stops us from creating more however. We are however going to limit ourselves to only one consumer during the workshop. Feel free to explore and create more consumers later yourself!
Now, what can we do with it? You may recall that there were Secrets involved in the permission claims when we bound the APIExport. As it turns out, we have a Secret with admin access to the PostgreSQL server (as we should, we own it!), and can use it to authenticate.
A side note: we are going to cheat a bit now. We are running all the clusters on the same machine, and we know what IPs and ports to use. Having the username and the password to the DB is one thing, knowing where to connect is another. In the real world, SQL3 Co. would have created a proper Ingress with a Service for us, and generated a connection string inside a Secret, and this would all work as it stands. Not having done that though, let's agree on a simplification: in place of ingress we will use port-forwarding, and the connection string we will create ourselves.
$ export KUBECONFIG=$KUBECONFIGS_DIR/provider.kubeconfig
$ # Pretending to have an Ingress by port-forwarding in a separate terminal.
$ # Note that the "kcp-rw" service is created by the cnpg operator, and that the "kcp" in the name comes from the PostgreSQL cluster name.
$ kubectl -n 1yaxsslokc5aoqme port-forward svc/kcp-rw 5432:5432
Forwarding from 127.0.0.1:5432 -> 5432
Forwarding from [::1]:5432 -> 5432
Handling connection for 5432
Handling connection for 8080
Handling connection for 8080
Handling connection for 8080
Handling connection for 8080
Handling connection for 8080
Handling connection for 8080
Handling connection for 8080
Handling connection for 8080
$ export KUBECONFIG=$KUBECONFIGS_DIR/admin.kubeconfig
$ export pg_username="$(kubectl get secret kcp-superuser -o jsonpath='{.data.username}' | base64 -d)"
$ export pg_password="$(kubectl get secret kcp-superuser -o jsonpath='{.data.password}' | base64 -d)"
$ docker run -it --rm --network=host --env PGPASSWORD=$pg_password postgres psql -h 127.0.0.1 -d one -U postgres
psql (17.4 (Debian 17.4-1.pgdg120+2))
SSL connection (protocol: TLSv1.3, cipher: TLS_AES_256_GCM_SHA384, compression: off, ALPN: postgresql)
Type "help" for help.
one=# SELECT * FROM pg_catalog.pg_tables WHERE schemaname = 'pg_catalog';
schemaname | tablename | tableowner | tablespace | hasindexes | hasrules | hastriggers | rowsecurity
------------+--------------------------+------------+------------+------------+----------+-------------+-------------
pg_catalog | pg_statistic | postgres | | t | f | f | f
pg_catalog | pg_type | postgres | | t | f | f | f
...
How cool is that!
In this exercise we've seen multiple personas interacting with each other, and each having different responsibilities. This is what the Software-as-a-Service style of workflow can look like. Want more? In the next, and final exercise of this workshop, we'll explore what it's like to develop and deploy mutli-cluster applications against kcp.
High-five! 🚀🚀🚀
Finished? High-five! Check-in your completion with:
If there were no errors, you may continue with the next exercise 🔥!
Cheat-sheet
You may fast-forward through this exercise by running:
03-dynamic-providers/00-run-provider-cluster.sh03-dynamic-providers/01-deploy-postgres.sh03-dynamic-providers/02-create-provider.sh03-dynamic-providers/03-create-consumer.sh03-dynamic-providers/04-run-api-syncagent.shin a separate terminal03-dynamic-providers/05-create-database.sh03-dynamic-providers/99-highfive.sh
