Explore workspaces
Workspaces are one of kcp's core concepts, and in this exercise we'll explore what they are and how to work with them.
See Workspaces documentation at docs.kcp.io/kcp/main/concepts/workspaces/.
Pre-requisites, take two
Workspaces, or kcp for that matter, is not something that vanilla kubectl knows about. kcp brings support for those using krew plugins. You may remember, we installed kubect-krew in the very first warm-up exercise. Now we need to install the plugins themselves:
Important
kubectl krew index add kcp-dev https://github.com/kcp-dev/krew-index.git
kubectl krew install kcp-dev/kcp
kubectl krew install kcp-dev/ws
kubectl krew install kcp-dev/create-workspace
# IMPORTANT HACK: https://github.com/kubernetes-sigs/krew/issues/865
cp $(which kubectl-create_workspace) $KREW_ROOT/bin/kubectl-create-workspace
Now you should be able to run and inspect these commands:
$ kubectl create workspace --help
Creates a new workspace
Usage:
create [flags]
...
$ kubectl ws --help
Manages KCP workspaces
Usage:
workspace [create|create-context|use|current|<workspace>|..|.|-|~|<root:absolute:workspace>] [flags]
workspace [command]
...
$ kubectl kcp --help
...
With that, let's create some workspaces!
Sprawling workspaces
We'll be using kubectl create workspace command:
kubectl create workspace one
kubectl create workspace two
kubectl create workspace three --enter
kubectl create workspace potato
Now, let's list what we've created:
We haven't seen ws use yet. Using this command you move into a different workspace in the tree of workspaces, much like cd moves you into a different directory described by a path. In the case of workspaces, a path too may be relative or absolute, where : is the path separator, and : alone denotes the root of the tree.
kubectl ws use :
kubectl ws use one
kubectl get configmap
kubectl create configmap test --from-literal=test=one
kubectl get configmap test -o json
kubectl ws use root:two
kubectl get configmap
kubectl create configmap test --from-literal=test=two
kubectl get configmap test -o json
Notice how even though these two ConfigMaps have the same name test, and are in the same namespace default, they are actually two distinct objects. They live in two different workspaces, and are completely separate. Workspaces represent logical separation of resources in the cluster.
We've created a few workspaces now, and already it's easy to lose sight of what is where. Say hello to ws tree:
You should get output similar to this:
Exporting and binding APIs across workspaces
Isolation is nice, but what if you need to share?
See docs.kcp.io/kcp/main/concepts/apis/exporting-apis/ for detailed documentation.
As you'll see next, sharing in this context will be a very well-defined and constrained relationship of provisioning and consuming. We shall model that relationship using workspaces.
Service provider
Create providers and providers:cowboys workspaces:
kubectl ws use :
kubectl create workspace providers --enter
kubectl create workspace cowboys --enter
$ kubectl ws use :
Current workspace is 'root'.
$ kubectl ws tree
.
└── root
├── one
├── providers
│ └── cowboys
├── three
│ └── potato
└── two
$ kubectl ws use :root:providers:cowboys
Current workspace is 'root:providers:cowboys' (type root:universal).
Now that we're in :root:providers:cowboys, let's create an APIResourceSchema and an APIExport. We'll discuss what are they for next.
kubectl create -f $WORKSHOP_ROOT/02-explore-workspaces/apis/apiresourceschema.yaml
kubectl create -f $WORKSHOP_ROOT/02-explore-workspaces/apis/apiexport.yaml
Starting with the first one, APIResourceSchema:
Try to skim through the YAML output and you'll notice that it is almost identical to a definition of a CRD. Unlike a CRD however, APIResourceSchema instance does not have a backing API server, and instead it simply describes an API that we can pass around and refer to. By decoupling the schema definition from serving, API owners can be more explicit about API evolution.
Take a note of the following properties in the output:
.spec.latestResourceSchemas: lists which APIResourceSchemas we are exporting,.spec.permissionClaims: describes resource permissions that our API depends on. These are the permissions that we, the service provider, want the consumer to grant us,.status.virtualWorkspaces[].url: a Kubernetes endpoint to access all resources that belong to this export, across all consumers.
# Stripped down example output of `kubectl get apiexport` command above.
spec:
latestResourceSchemas:
- today.cowboys.wildwest.dev
permissionClaims:
- all: true
group: ""
resource: configmaps
status:
virtualWorkspaces:
- url: https://192.168.32.7:6443/services/apiexport/1ctnpog1ny8bnud6/cowboys
Service consumer
With the provider in place, let's shift into the role of a consumer. Actually, two consumers, in their own workspaces! Let's start with the first one, named "wild-west":
kubectl ws use :
kubectl create workspace consumers --enter
kubectl create workspace wild-west --enter
kubectl kcp bind apiexport root:providers:cowboys:cowboys --name cowboys-consumer --accept-permission-claim configmaps.core
kubectl create -f $WORKSHOP_ROOT/02-explore-workspaces/apis/consumer-wild-west.yaml
Let's check the Cowboy we have created:
$ kubectl get cowboy buckaroo-bill -o json
{
"apiVersion": "wildwest.dev/v1alpha1",
"kind": "Cowboy",
"metadata": {
"annotations": {
"kcp.io/cluster": "2snrfbp1a3gww1hu"
},
"creationTimestamp": "2025-03-12T09:06:53Z",
"generation": 1,
"name": "buckaroo-bill",
"namespace": "default",
"resourceVersion": "3164",
"uid": "bb6ece46-84bc-4673-a926-f38c486799cf"
},
"spec": {
"intent": "Ride and protect the wild west!!!"
}
}
And the second consumer, "wild-north":
kubectl ws use ..
kubectl create workspace wild-north --enter
kubectl kcp bind apiexport root:providers:cowboys:cowboys --name cowboys-consumer --accept-permission-claim configmaps.core
kubectl create -f $WORKSHOP_ROOT/02-explore-workspaces/apis/consumer-wild-north.yaml
$ kubectl get cowboy hold-the-wall -o json
{
"apiVersion": "wildwest.dev/v1alpha1",
"kind": "Cowboy",
"metadata": {
"annotations": {
"kcp.io/cluster": "30j93qa92345q3tp"
},
"creationTimestamp": "2025-03-12T09:09:32Z",
"generation": 1,
"name": "hold-the-wall",
"namespace": "default",
"resourceVersion": "3227",
"uid": "ff96ab88-b738-4af7-8cc0-3872c424d9df"
},
"spec": {
"intent": "North is there the wall is!"
}
}
Great! We have created two instances of a common API, and were able to create a couple of dummy objects with it.

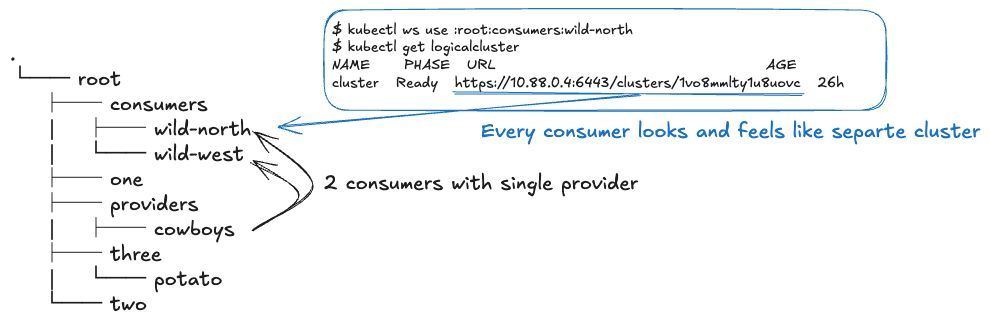

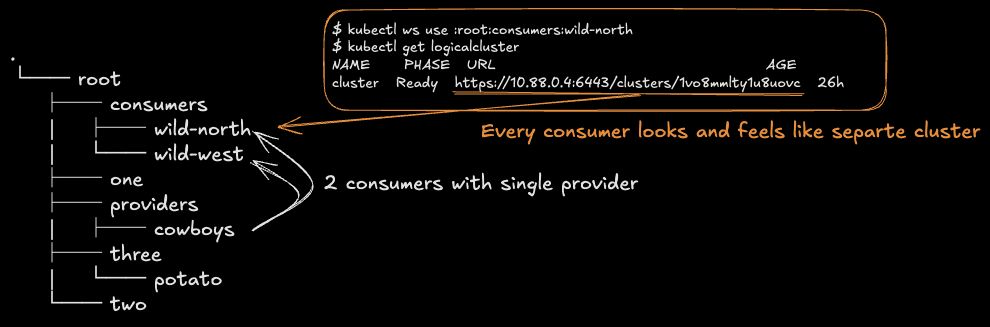

$ kubectl ws use :
Current workspace is 'root'.
$ kubectl ws tree
.
└── root
├── consumers
│ ├── wild-north
│ └── wild-west
├── one
├── providers
│ └── cowboys
├── three
│ └── potato
└── two
Spec up, status down
We have been moving across namespaces up and down, changing our implied roles. Let's become the service provider again, and see what we can make out from our cowboys APIExport.
kubectl ws :root:providers:cowboys
kubectl get apiexport cowboys -o json | jq '.status.virtualWorkspaces[].url'
Using that URL, we can confirm that we have access to the resources the consumers have agreed to:
$ kubectl -s 'https://192.168.32.7:6443/services/apiexport/1ctnpog1ny8bnud6/cowboys/clusters/*' api-resources
NAME SHORTNAMES APIVERSION NAMESPACED KIND
configmaps v1 true ConfigMap
apibindings apis.kcp.io/v1alpha1 false APIBinding
cowboys wildwest.dev/v1alpha1 true Cowboy
We can also list all consumers (i.e. workspaces that have relevant APIBinding) for cowboys APIExport:
$ kubectl -s 'https://192.168.32.7:6443/services/apiexport/1ctnpog1ny8bnud6/cowboys/clusters/*' get cowboys -A
NAMESPACE NAME
default buckaroo-bill
default hold-the-wall
You can play around with inspecting the json output of those commands, and try addressing a specific cluster instead of all of them (wildcard *) to get some intuition about how they are wired together.
From that, you can already start imagining what a workspace-aware controller operating on these objects would look like: being able to observe global state in its workspace subtree, it would watch spec updates from its children (Spec up), and push them status updates (Status down). Our basic example is lacking such a controller. But that's something we are going to fix the next exercise, on a more interesting example!
High-five! 🚀🚀🚀
Finished? High-five! Check-in your completion with:
If there were no errors, you may continue with the next exercise 🔥!
Cheat-sheet
You may fast-forward through this exercise by running:
* 02-explore-workspaces/00-install-krew-plugins.sh
* 02-explore-workspaces/01-create-apis.sh
* 02-explore-workspaces/02-create-consumers.sh
* 02-explore-workspaces/99-highfive.sh
